10G SFP+ CWDM Transceiver 10KM Single Mode 1470nm 3.3V Support DDM RoHS Compliant

  • 1
  • 2
  • 3

Brand Name : Olycom

Model Number : OSPLXG10D-Cxx

Certification : CE RoHS FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 5000pcs/month

Delivery Time : 3~6 working days

Packaging Details : 1 piece in a box, 250g G.W.

Product Name : 10G SFP+ CWDM module

Speed : 10.3Gbps

Connector : LC, duplex

Wavelength : 1470nm

Voltage : 3.3V

Operating temperature : 0 to +70°C

Contact Now

Single Mode 10km Reach 10.3Gbps SFP+ CWDM Transceiver



Product Features of CWDM SFP+ module



  1. Supports up to 10.3Gbps bit rates
  2. Hot-pluggable SFP+ footprint
  3. CWDM DFB laser and PIN photodiode, Up to 10km for SMF transmission
  4. Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  5. Compatible with RoHS
  6. Single +3.3V power supply
  7. Real Time Digital Diagnostic Monitoring
  8. Operating case temperature:
  9. Standard: 0 to +70°C



Description



The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.

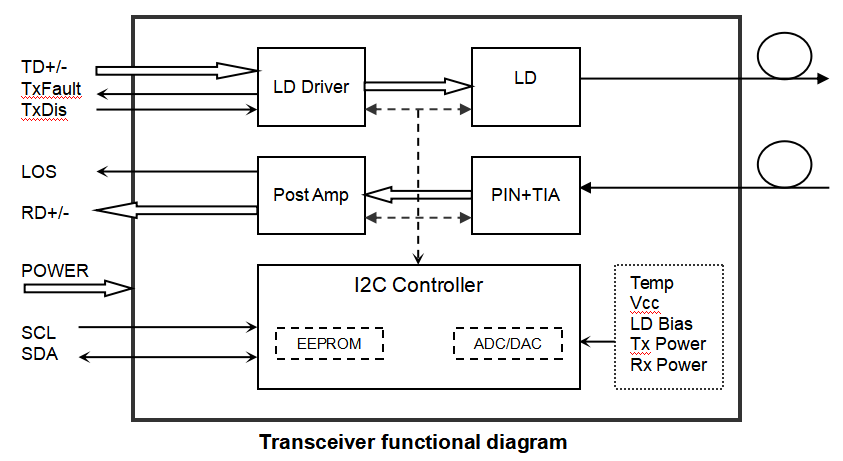

The transceiver consists of three sections: a uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.



10G SFP+ CWDM Transceiver 10KM Single Mode 1470nm 3.3V Support DDM RoHS Compliant



Absolute Maximum Ratings



Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity - 5 85 %



Recommended Operating Conditions



Parameter Symbol Min Typical Max Unit
Operating Case Temperature Tc 0   +70 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc     320 mA
Data Rate   1.0 10.3 10.7 Gbps



Optical and Electrical Characteristics



Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc λc-6.5 λc λc+6.5 nm
Spectral Width(-20dB) Δλ     1 nm
Side-Mode Suppression Ratio SMSR 30 -   dB
Average Output Power Pout -3.5   +2 dBm 1
Extinction Ratio ER 3.5     dB
Data Input Swing Differential VIN 180   850 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
TX Disable Disable   2.0   Vcc V
Enable   0   0.8 V
TX Fault Fault   2.0   Vcc V
Normal   0   0.8 V
Receiver
Centre Wavelength λc 1260   1620 nm
Receiver Sensitivity       -14 dBm 3
Receiver Overload   1     dBm 3
LOS De-Assert LOSD     -15 dBm
LOS Assert LOSA -28     dBm
LOS Hysteresis   0.5     dB
Data Output Swing Differential Vout 300   900 mV 4
LOS High 2.0   Vcc V
Low     0.8 V



Pin Description



10G SFP+ CWDM Transceiver 10KM Single Mode 1470nm 3.3V Support DDM RoHS Compliant



Mechanical Dimension



10G SFP+ CWDM Transceiver 10KM Single Mode 1470nm 3.3V Support DDM RoHS Compliant



Application



  • 10Gbps CWDM Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems
  • Other Optical links

10G SFP+ CWDM Transceiver 10KM Single Mode 1470nm 3.3V Support DDM RoHS Compliant
