1550nm Gigabit SFP Module Transceiver , SFP Copper Module BiDi WDM 20km

  • 1
  • 2
  • 3

Brand Name : Olycom

Model Number : OSBL1G20D-35

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1Pcs

Price : Negotiable

Payment Terms : T/T, Paypal

Supply Ability : 3000Pcs per week

Delivery Time : 3~7 working days

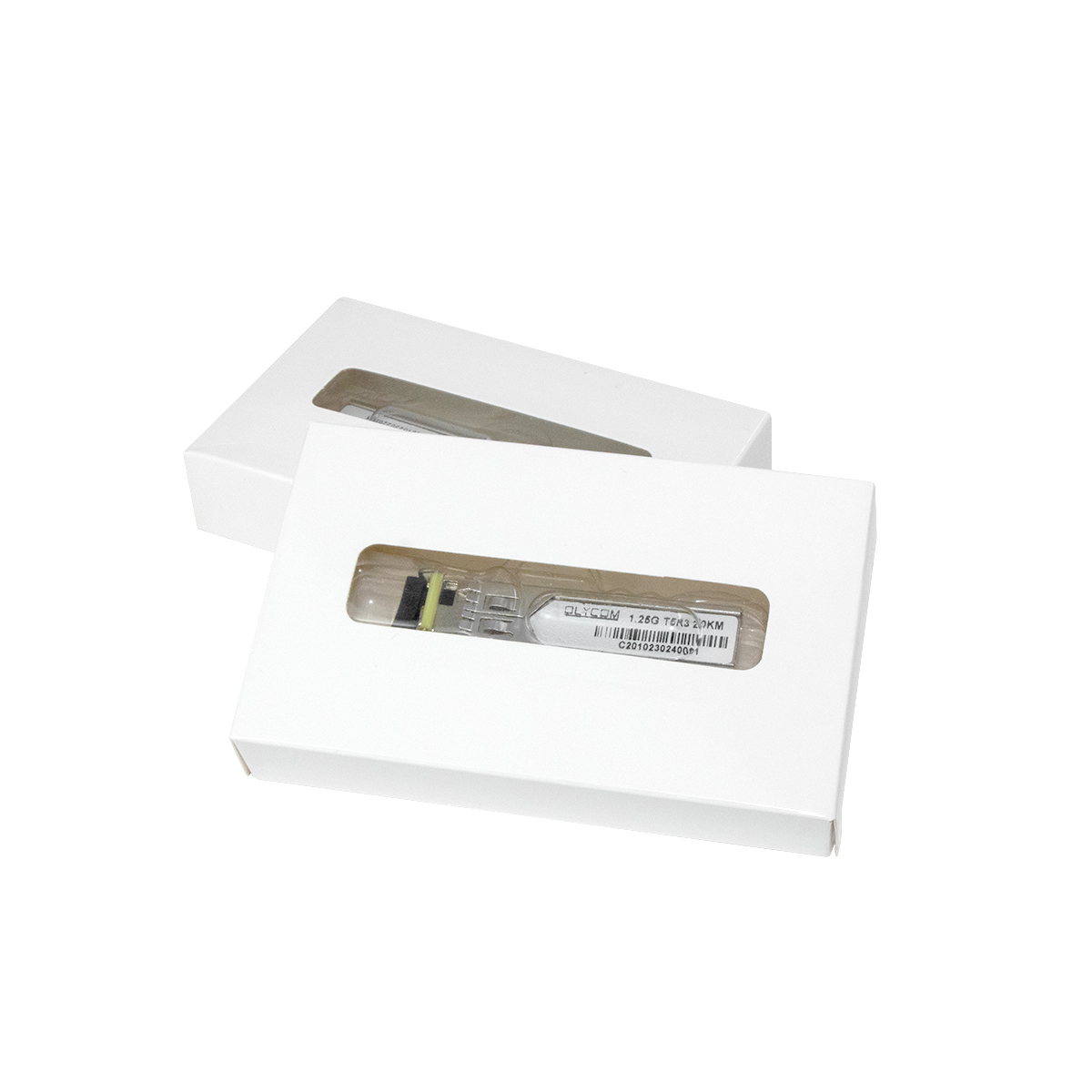

Packaging Details : 1 piece in 1 carton. 0.2KG/pcs

Product name : Industrial Gigabit SFP fiber transceiver

Wavelength : 1310nm/1550nm, WDM

Distance : 20Km, single mode

Port : LC fiber

Rate : 1.25Gb/s, gigabit

Working temp : -40°～85°C

Application : 1000Base-LX Ethernet, Metro/Access Networks

Contact Now

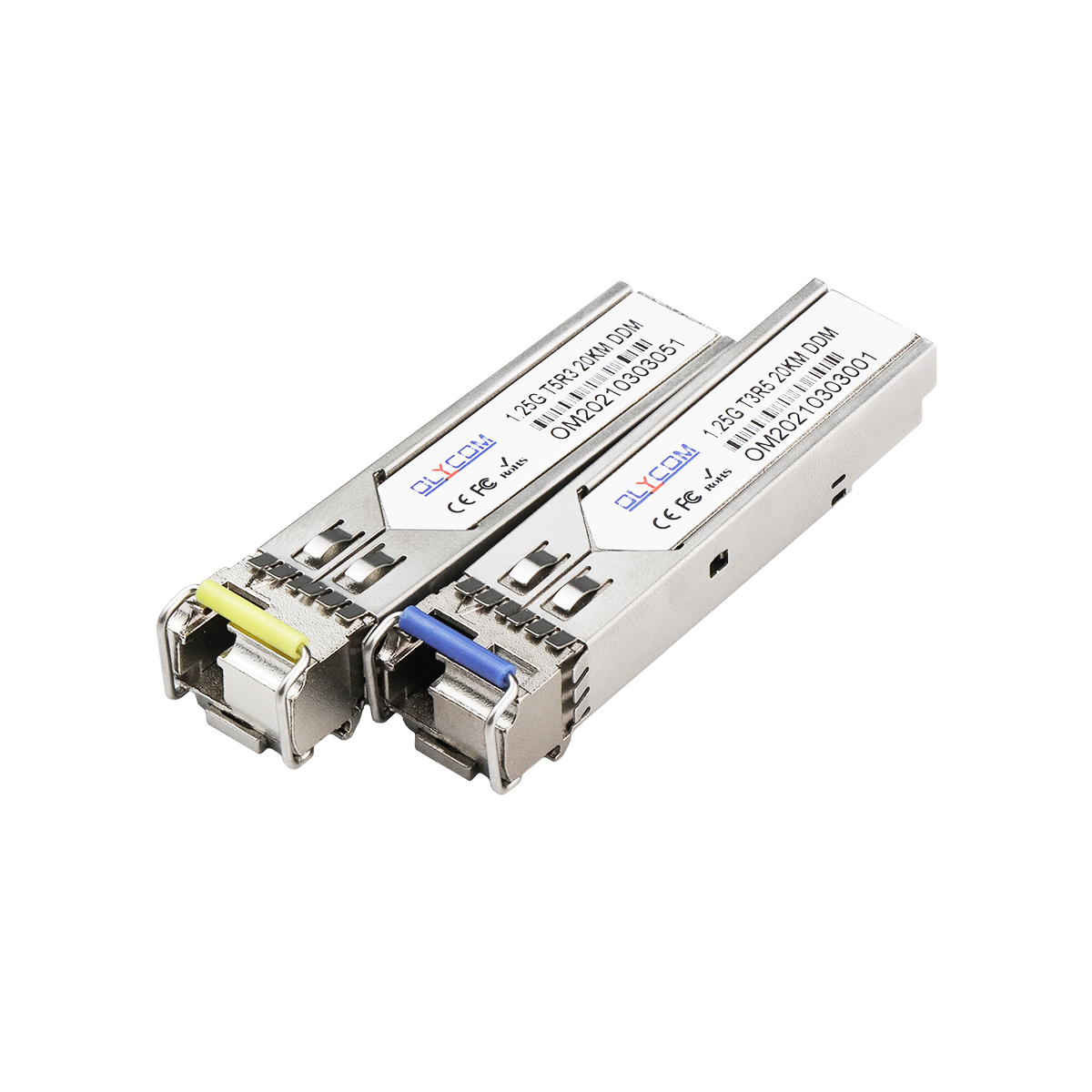

Gigabit Industrial LC Fiber Module SFP Transceiver BiDi WDM 20km 1310nm



Overview



  • OLYCOM OSBL1G20D-35 Transceivers are a high performance, cost effective module which have a single LC optics interface.
  • They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472.
  • The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.



Features



  1. Up to 1.25Gb/s Data Links
  2. Hot-Pluggable
  3. Single LC connector
  4. Up to 20 km on 9/125μm SMF
  5. 1310nm FP laser transmitter
  6. 1550nm PIN photo-detector
  7. Single +3.3V Power Supply
  8. Monitoring Interface Compliant with SFF-8472
  9. Maximum Power <1W
  10. -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  11. RoHS compliant and Lead Free



Optical Parameters



Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 1270 1310 1600 nm
Spectral Width(RMS) σRMS     4 nm
Optical Output Power Pout -9   -3 dBm 1
Extinction Ratio ER 9     dB
Optical Rise/Fall Time tr / tf     260 ps 2
Relative Intensity Noise RIN     -120 dB/Hz
Total Jitter Contribution TX Δ TJ     0.284 UI 3
Eye Mask for Optical Output Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 1530 1550 1570 nm
Receiver Overload Pol -3     dBm 4
RX Sensitivity Sen     -24 dBm 4
RX_LOS Assert LOS A -40     dBm
RX_LOS De-assert LOS D     -25 dBm
RX_LOS Hysteresis LOS H 0.5     dB
General Specifications:
Data Rate BR   1.25   Gb/s
Bit Error Rate BER     10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s LMAX   20   km
Total System Budget LB 14     dB


Application



  • 1×Fibre Channel
  • Other Optical Links

1550nm Gigabit SFP Module Transceiver , SFP Copper Module BiDi WDM 20km

1550nm Gigabit SFP Module Transceiver , SFP Copper Module BiDi WDM 20km
