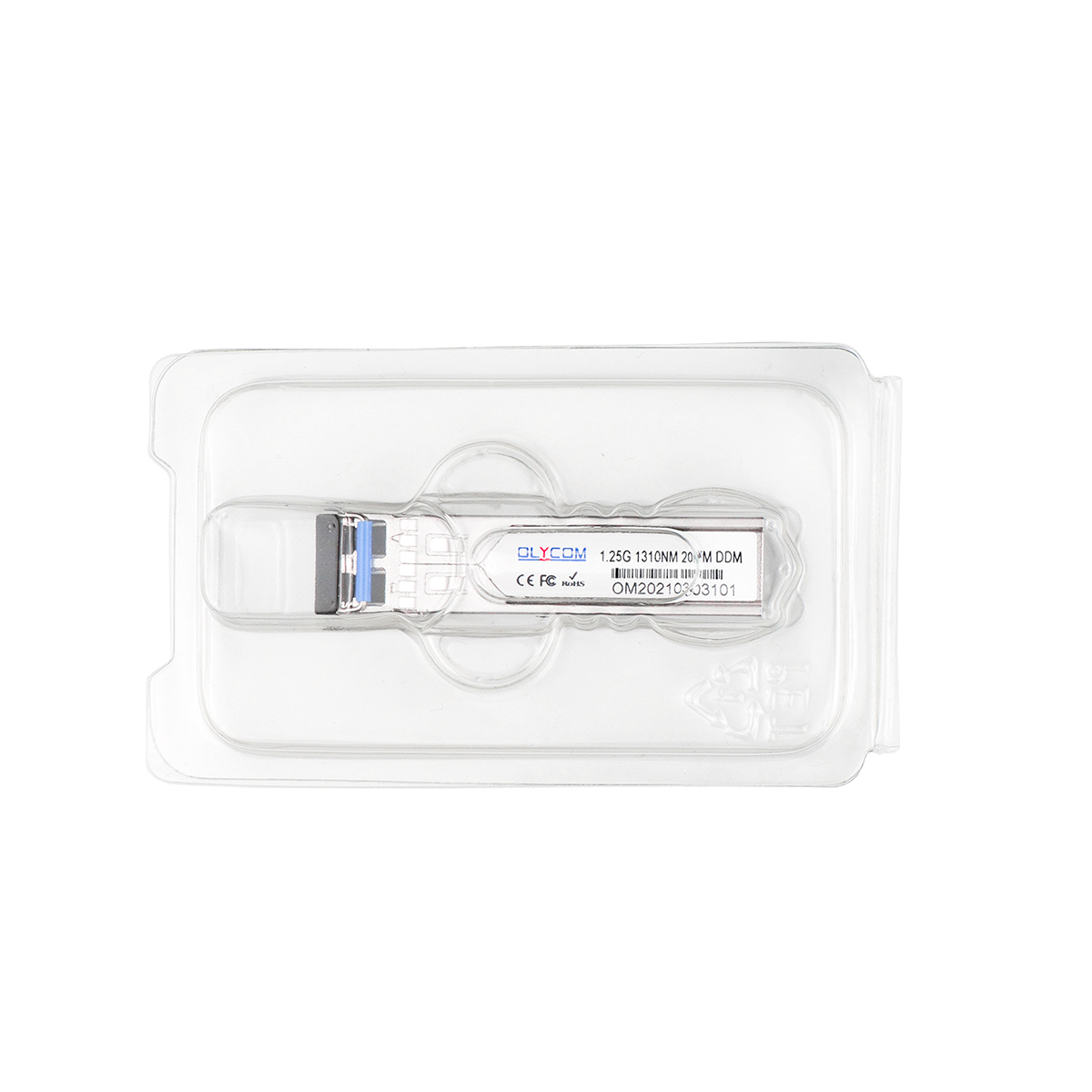

1.25G SFP Transceiver 20KM Singlemode 1000Base-LX 1310nm Dual LC Connector With DDM

Product Categories

Shenzhen Olycom Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 125G SFP Transceiver 20KM Singlemode 1000BaseLX 1310nm Dual LC Connector With DDM
Brand: Olycom
Price: 1 USD

Brand Name : Olycom

Model Number : OSPL1G20D

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1Pcs

Price : Negotiable

Payment Terms : T/T, Paypal

Supply Ability : 5000Pcs per week

Delivery Time : 3~7 working days

Packaging Details : 1 piece in 1 carton. 0.2KG/pcs

Product name : 1000Base-LX 1.25G SFP Transceiver

Distance : 20KM LR

Wavelength : 1310nm, single mode

Fiber port : LC, duplex

Transmission rate : 1.25Gb/s

Working Temp : -40°C to 85°C

Contact Now

Cisco Meraki Ubiquiti Mikrotik Compliant 1.25G SFP Transceiver

Product Overview

OLYCOM OSPL1G20D Transceiver is a high performance, cost effective module which have a duplex LC optics interface.
Standard AC coupled CML for high speed signal and LVTTL control and monitor signals.
The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 20km application.

Features

Applications

Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λc	1270	1310	1360	nm
Spectral Width(RMS)	σRMS			3	nm
Optical Output Power	Pout	-9		-3	dBm	1
Extinction Ratio	ER	8.2			dB
Optical Rise/Fall Time	tr / tf			260	ps	2
Relative Intensity Noise	RIN			-120	dB/Hz
Output Eye Mask	Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength	λc	1260		1360	nm
Receiver Overload	Pol	-3			dBm	4
RX Sensitivity	Sen			-24	dBm	4
RX_LOS Assert	LOS A	-35			dBm
RX_LOS De-assert	LOS D			-25	dBm
RX_LOS Hysteresis	LOS H	0.5			dB
General Specifications:
Data Rate	BR		1.25		Gb/s
Bit Error Rate	BER			10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s	LMAX		20		km
Total System Budget	LB	15			dB
