Industrial Managed POE Switch for High-Efficiency Gigabit Data Transmission Supprot bt 90W

Brand Name : Olycom

Model Number : IM-FP20808GW

Certification : CE RoHS FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 3000pcs/month

Delivery Time : 4~7 days

Packaging Details : 1 piece in a box, 900g G.W.

Product name : 8 port industrial poe managed switch

PoE protocol : PoE af/at/bt

Console : RS-232 (RJ-45)

Power input : DC48V~DC57V

Mounting method : Din rail

Protocols : CSMA/CD

Contact Now

Olycom L2+ Ring Managed Gigabit Industrial POE++ Switch



Management Features of Managed POE++ Switch



  1. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  2. Support Qos, transport classification Qos, Cos, bandwidth control
  3. (input/output direction), storm suppression ,differentiated services
  4. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  5. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  6. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  7. Support IGMP agent report, MLD snooping
  8. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  9. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  10. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  11. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  12. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  13. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.



Specification of Managed POE++ Switch



Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch
Model No. IM-FP20808GW
Port

2 x 1000Mpbs SFP port, 1G/2.5G both supportive
SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km;
MM: 1310nm, 2Km; 850nm, 500 meters
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: Storage and forward
System bandwidth: 20Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 15.4W (port 1~8)
(802.3at/bt standards required special instructions)



Introduction of Managed POE++ Switch



IM-FP21008GW is Gigabit Managed 10-port,L2 Gigabit Ethernet 90W PoE Ring Switch.IM-FP21008GW provides IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for total power of 750W ,This enables it to provide power for the most demanding PoE applications for PTz domes,LED lighting and wireless products. It is compliant to G.8032 ERPS V1/V2 Ring protocol.The .IM-FP21008GW is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis ,6kv surge protection and user programmable port thermal protection of over temperature shut down to prevent damage to the IM-FP21008GW from excessive heat.

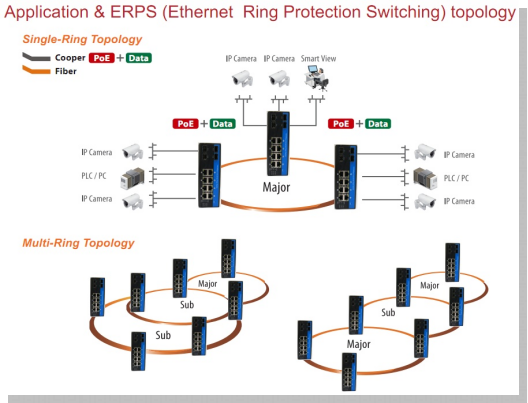

Application of Managed POE++ Switch



Industrial Managed POE Switch for High-Efficiency Gigabit Data Transmission Supprot bt 90W
