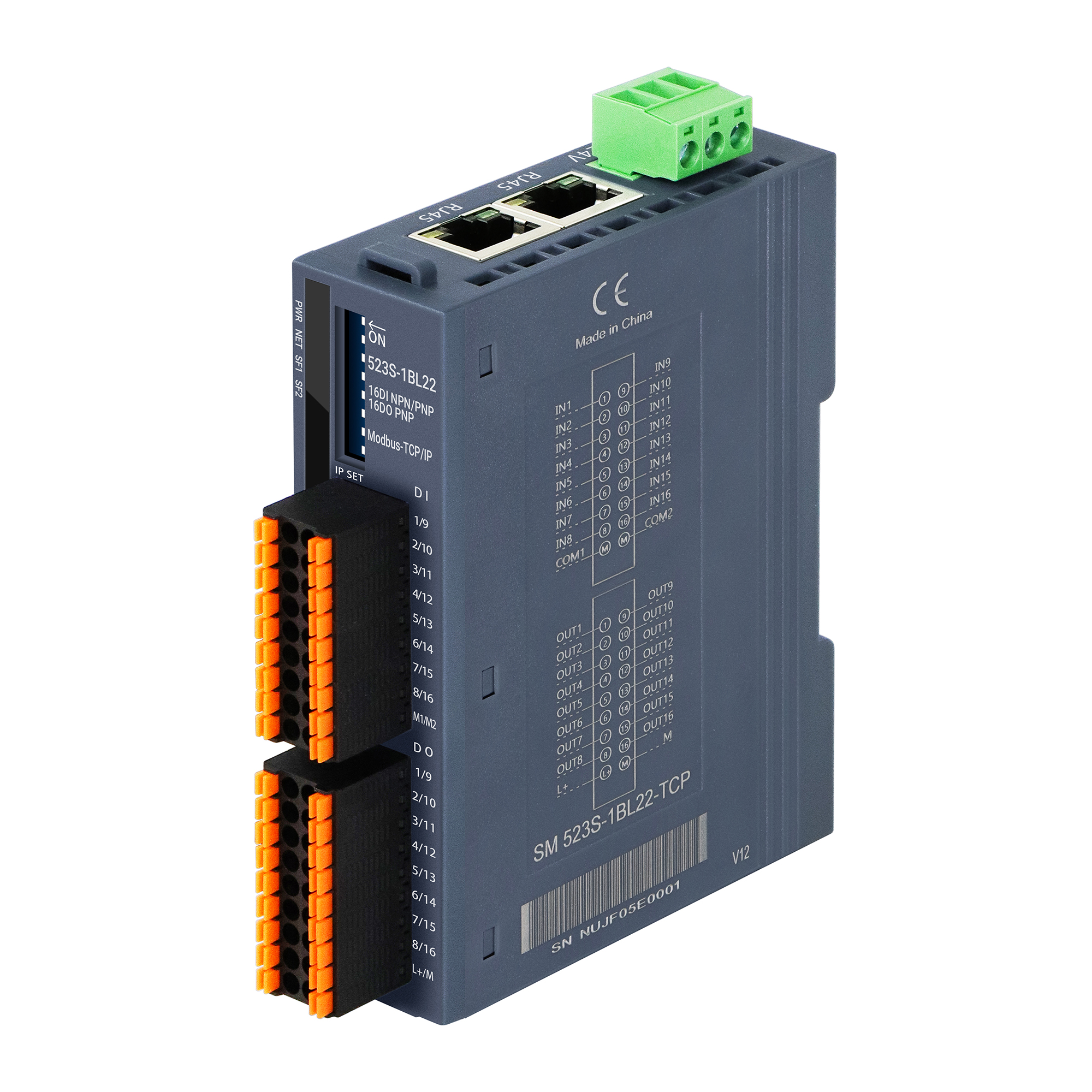

TCP/IP Modbus I/O Slave Module NPN and PNP supported 16 Port DI DO DIN Mounted

  • 1
  • 2
  • 3

Brand Name : Olycom

Model Number : OM523S-1BL22-TCP

Certification : CE RoHS FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 2000pcs/month

Delivery Time : 4~7 days

Packaging Details : 1 piece in a box, 450g G.W.

Product name : TCP/IP Modbus Unit

Digital input : 16*common cathode/anode input

Digital output : 16*PNP output

Power : DC24V

Mounting : DIN35 mounted

Protection Grade : IP20

Contact Now

TCP/IP Modbus PLC Module



Key Features



  • 2 RJ45 interfaces, 100Mbit/s
  • Bus, power isolation technology, and reliability
  • Standalone as Modbus-TCP slave station
  • 24VDC power supply
  • 8-bit DIP switch to set the station ID address
  • built-in 16DI (common cathode/common anode input)
  • 16DO (PNP output)
  • IP20
  • DIN35 din-rail installation



TCP/IP Modbus I/O Slave Module NPN and PNP supported 16 Port DI DO DIN Mounted



Specification



Technical Specifications
Working Voltage 24VDC (allowable voltage range 18VDC~28VDC)
Operating Current Loss Based on different product models, please refer to the product manual for details
Power Protection Anti reverse connection protection, surge absorption
Communication Interface 2*RJ45
Power Terminal Type Plugged connector, screw wiring connection port
Signal Terminal Type Plugged connector, straight in PUSH-IN wiring port
Display Indication Power supply, NET green indicator light, SF red indicator light, IO signal green indicator light
Protocol Modbus-TCP/IP,S7-TCP/IP
Master-slave Categories standalone slave devices
Main IO Points Yes, please refer to the ordering data for details
Overcurrent Protection Threshold 1.5A,5ms
IO Response Time Min 2ms
Scalability Do not support Extension
Cable length (shielding) Maximum 500m
Cable length (unshielded) The maximum length of the input point is 300m, and the maximum length of the output point is 150m



Slave Station Settings
IP Settings Set by dial switch or webpage
Maximum number of Stations per Segment 255 (The specific number of supported stations is determined by the main station)



Work Environment
Working Temperature -20~60℃
Working Humidity 5%~90% (non-condensation)
Altitude Below 2000 meters (80kPa)
Protection Grade IP20
Dimensions (L* W* H) 27mm*94mm*114mm



Ordering Details



Specifications Product No.
OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (PNP output), IP20 protection level, supports DN35 rail installation



OM523S-1BL22-TCP
OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (NPN output), IP20 protection level, supports DN35 rail installation



OM523S-1NL22-TCP

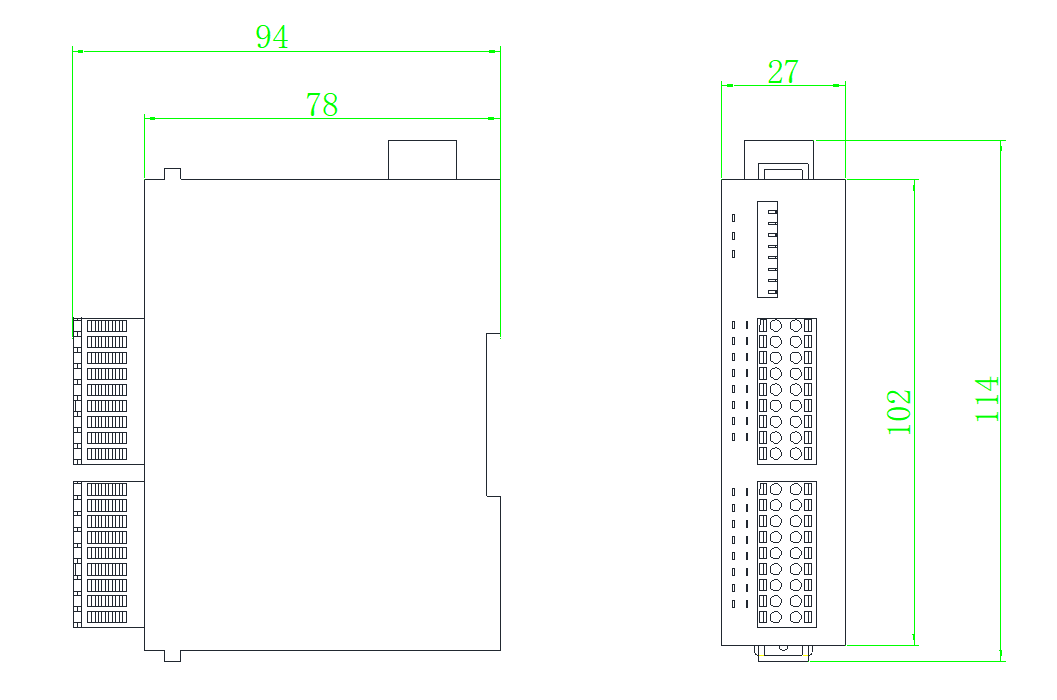

Mechanical Drawing



TCP/IP Modbus I/O Slave Module NPN and PNP supported 16 Port DI DO DIN Mounted

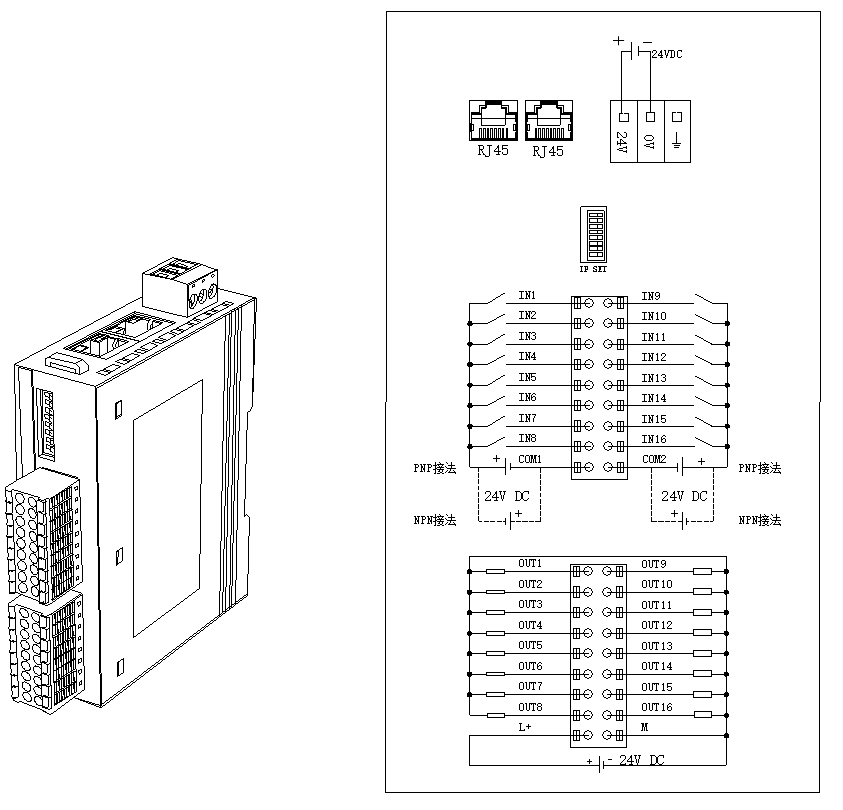

Connection



TCP/IP Modbus I/O Slave Module NPN and PNP supported 16 Port DI DO DIN Mounted
