12V/24V/48V Voltage Booster Gigabit Solar Power PoE Switch
| Product Name | 10/100/1000Mbps Industrial POE Network Switch (5TP) |
| Model No. | IM-WP054BGE |
| Port | 1 x 10/100/1000Mpbs uplink network port 4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode: storage and forward System bandwidth: 10Gbps(non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |
| Power supply | POE power supply input voltage: DC12V-48V Single PoE power supply output power: 15.4W/30W (port 1~4) Total PoE budget: 120W PoE output voltage: DC48V, active PoE |
| Environment | Working temperature: -40°C～ 75°C Storage temperature: -40°C～ 85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety | CE Mark, commercial CE/LVD EN60950 |
| Mechanical information | Shell: Corrugated metal shell Safety class: IP40 Dimension: 114 x 93 x 35mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |

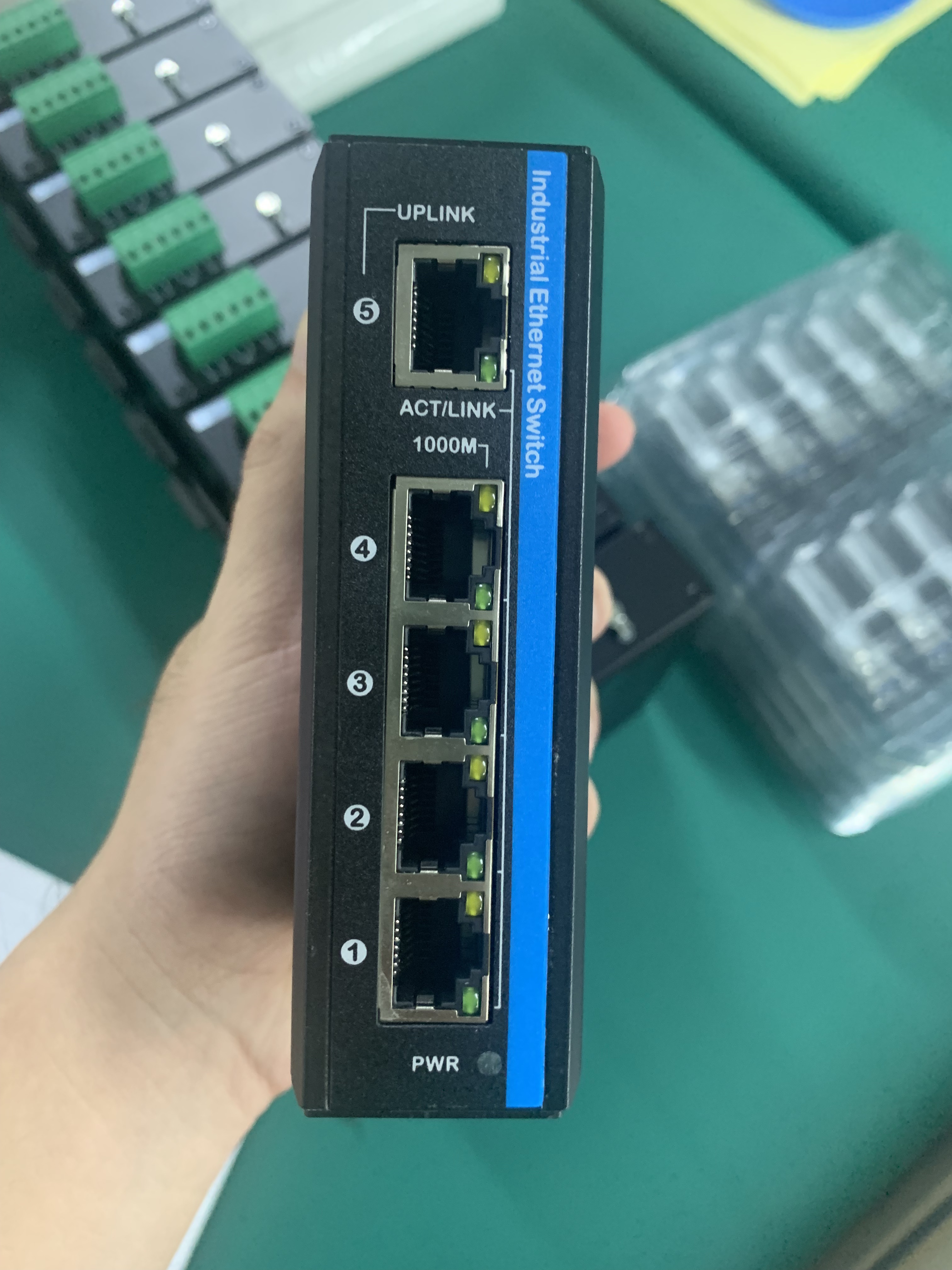

Key Features of Industrial PoE Switch
4 x 10/100/1000Mbps Auto-sensing RJ45 ports
1 x 10/100/1000Mbps uplink network port
6 KV Ethernet surge protection, adapt to a harsh outdoor environment
IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system
Detect the PoE models of electrical equipment
Operating environment temperature: -40℃~75℃
Q&A of Gigabit PoE Switch
1. Q: How does this Industrial 5 Ports Gigabit POE+ Network Switch compare to other standard POE switches?
A: This 5port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.
2. Q: Does this industrial 5 ports PoE switch support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
3. Q: Is it a managed industrial network switch?
A: It is unmanaged industrial network switch and no need any setting. It is plug and play, easy to use.
4. Q: What's is the PoE Pin Assignment of this Industrial 5 Ports POE+ Network Switch?
A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).
5. Q: Can I use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch. The industrial 5port PoE switch will provide data only, and don't provide power anymore.
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: How will you send my goods?
A: We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.
3 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
5 Q: What is warranty time?
A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.
