Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot

  • 1
  • 2
  • 3

Brand Name : Olycom

Model Number : IM-FP144GE

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1Pcs

Price : Negotiable

Payment Terms : T/T, Paypal

Supply Ability : 3000Pcs per month

Delivery Time : 4~8 working days

Packaging Details : 1 pair in a box, 0.9kg(G.W)

POE budget : 120W

POE standard : 15.4W/30W

Dimension : 158*115*60mm

Weight : 0.9kg

Voltage : DC48V input

Brand : Support OEM

Contact Now

4 Port PoE Gigabit Ethernet Switch



Key Features of Industrial PoE Switch



  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  2. IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
  3. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  4. 1 x 1000Mbps SFP fiber ports
  5. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  6. Support Auto MDI/MDIX

This 4 port POE switch also features

  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant

  • Max power to 15.4W under af standard, 30W under at standard to each PoE port
  • Detect the PoE models of electrical equipments.

  • A store-and-forward switching mechanism

  • power range up to 100 meters

  • comply with FCC and CE standards

  • ensure continuous and stable operation of the automation system



Specification of CCTV PoE Switch



Product Name 10/100/1000Mbps Industrial POE Fiber Switch (1F+4TP)
Model No. IM-FP144GE
Port

1 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km; 1490nm/1550nm,40~120Km

MM:1310nm, 2Km; 850nm, 500-meter

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth: 20Gbps (non-traffic jam)

Forwarding rate: 14.88Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W

PoE output voltage: 48V



Environment

Working temperature:-40°C～75°C

Storage temperature:-40°C～85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark, commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

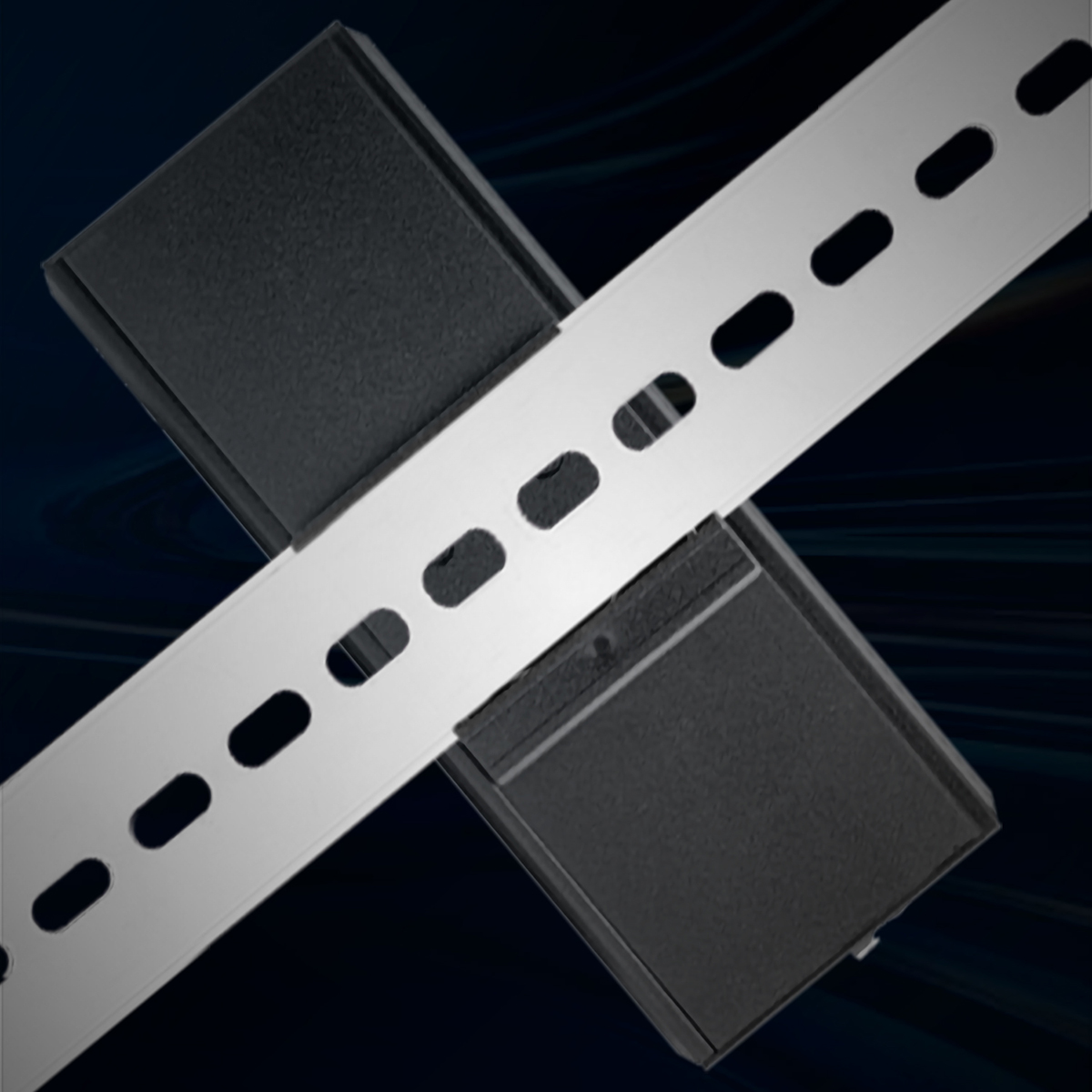

Mounting method: Din-rail/Wall mounting
Warranty Replacement within 1 year; 3 years repairing

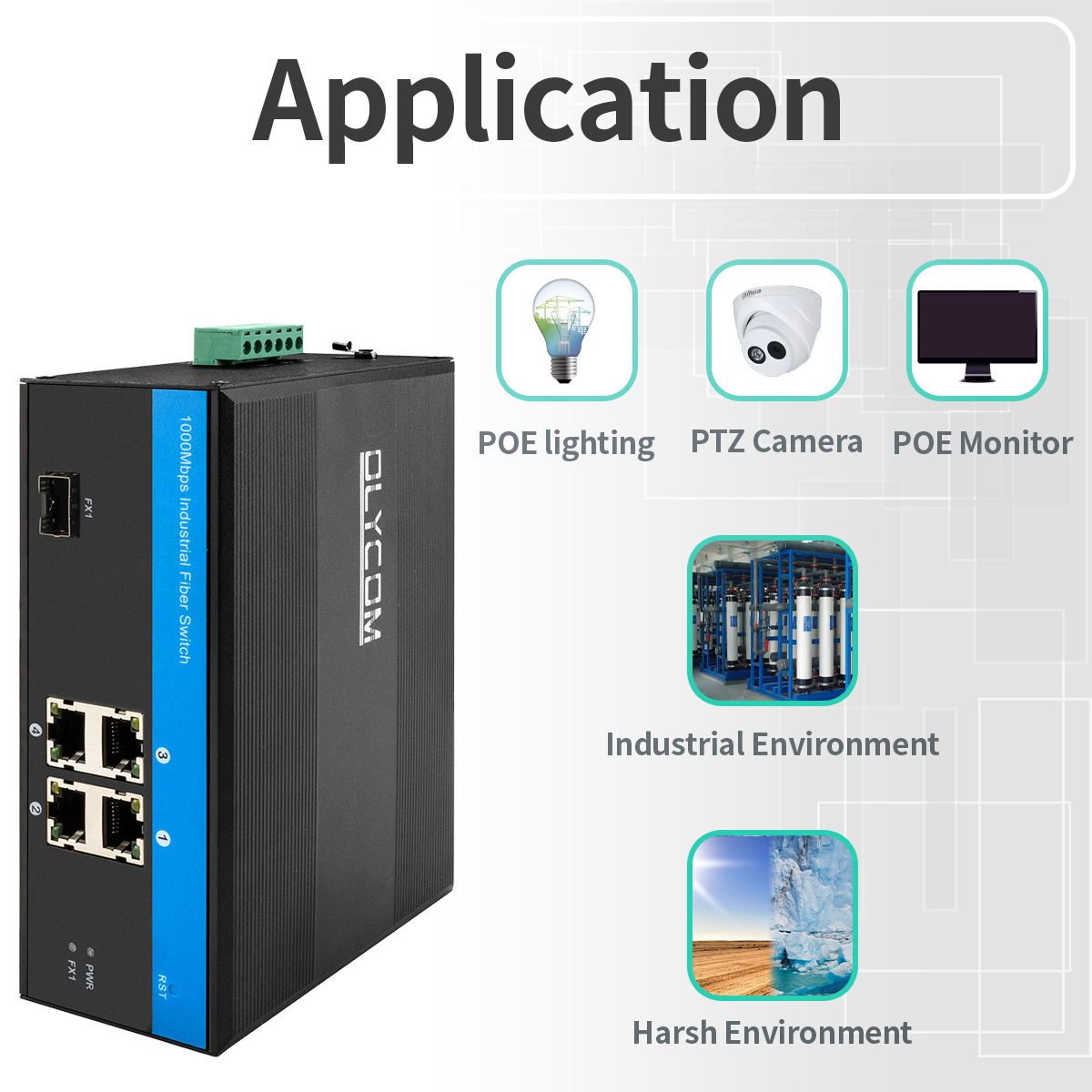

Application of Gigabit Fiber Switch



Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot

Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot



More product photos



Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot

Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot



OEM/ODM

  • OEM and ODM service are optional.
  • We are fully connected with our customers, even if just for a single purchase.
  • The Customer information will be highly confidential, and relevant cooperation information will not be leaked to a third party without the customer’s permission.
  • It starts from the promise of professional products and services, but our work goes far beyond. It is not only fiber optic connection, but also human connection.



The customization mainly covers industrial manufacturing and product features.

Industrial manufacturing

  • Add customer’s logo/model name on the device/packing box
  • Use customer’s product enclosure or materials
  • Change the PVC mask



Product features

Design some specific features for a project

Do some changes to the available functions



Above listed is just about some commonly asked points, please visit this link or talk with us for more information.

https://www.industrialnetworkswitch.com/factory.html



Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot
